3C1 12V/10W DC Water Flow Pump Generator Turbine Generator Water Flow Hydraulic DIY - F50-12V

  • Sale
  • Regular price Dhs. 60.00


Delivery within UAE in 2 Days

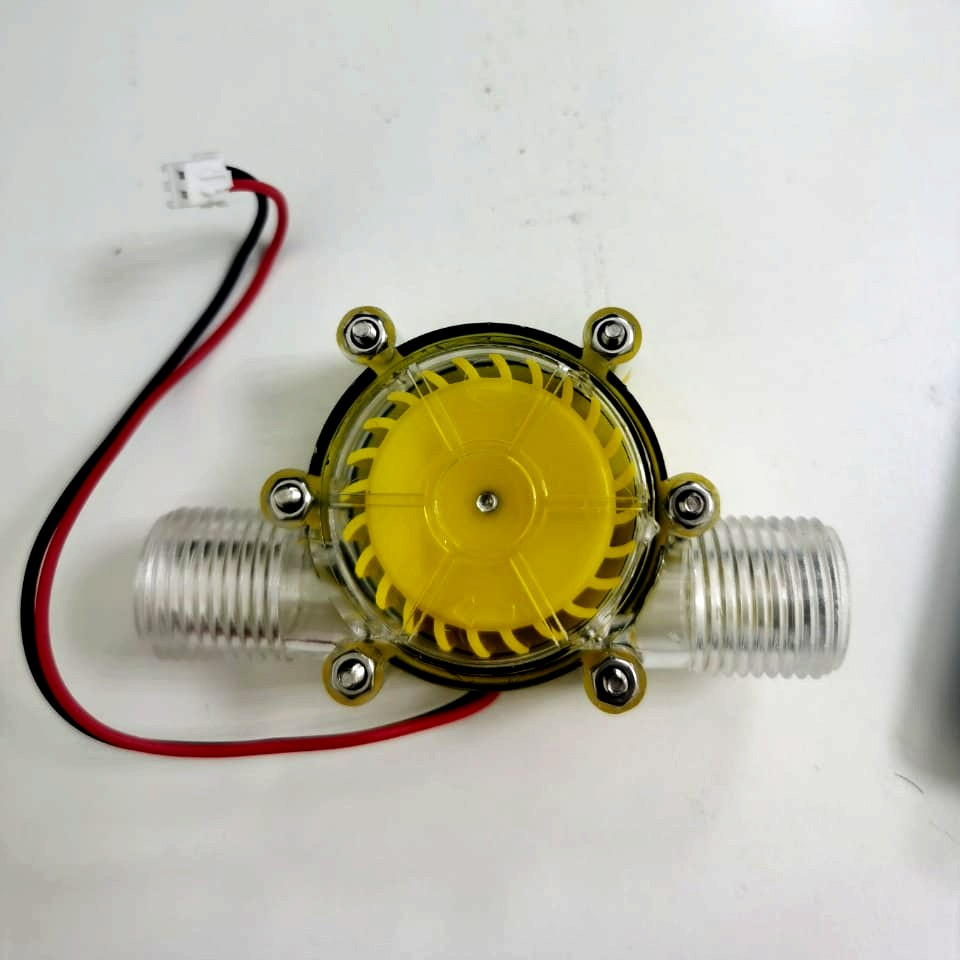

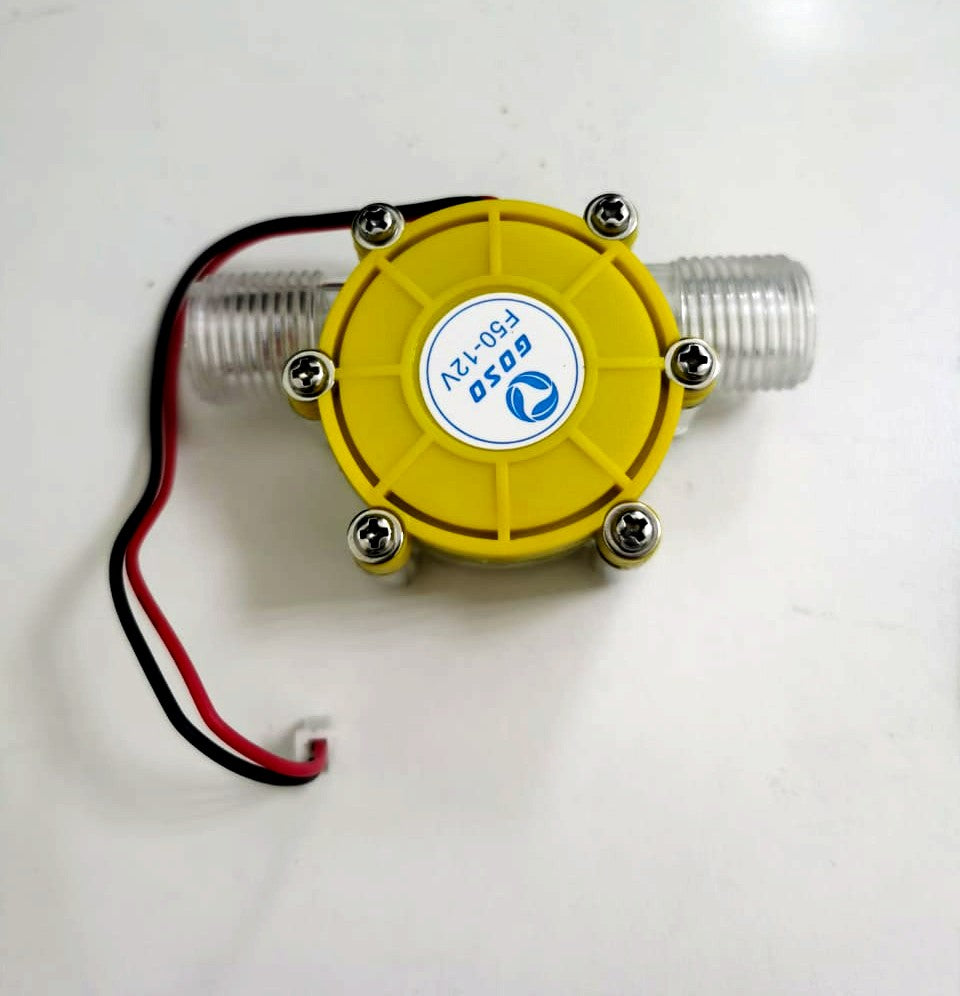

10 W Water Flow Pump Micro Hydro Turbine Generator Hydraulic Flow Generator 12 V

Ideal for converting energy from water into electrical mechanical energy equipment

D Irectly used to charge a small battery , mobile phone, or power supply lights LED, etc.

Output voltage : Max. 80V (1.2Mpa)

Current Output¬†:¬†Max.¬†‚Č•220mA (12V)¬†

Resistance line¬†:¬†10.5 ¬Ī 5ő©

Insulation Resistance¬†:¬†10Mő© (DC100 megohmmeter)

C Losed Outle T Compression : Max. 0.6Mpa

Open Outle T Compression : Max. 1.2Mpa

Starting water pressure : 0.05Mpa

Axial clearance : 0.2-1.0mm

Mechanical noise¬†:¬†‚ȧ55dB

Output characteristics: the output voltage without the voltage regulator circuit is proportional to the water pressure

Installation: household standard 1/2 inch water pipe  ( outer diameter : 20mm , inner diameter : 13mm
