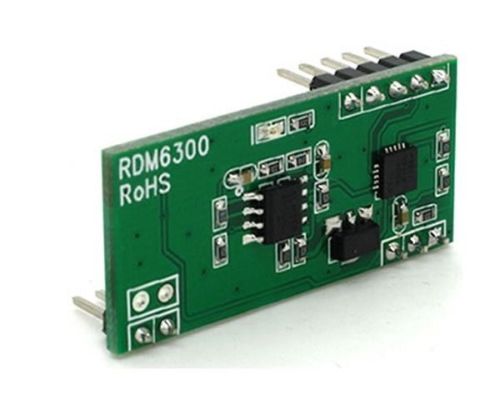

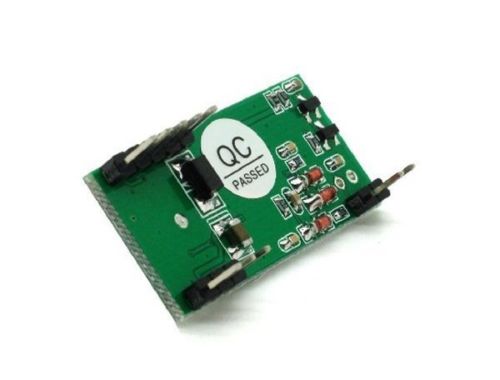

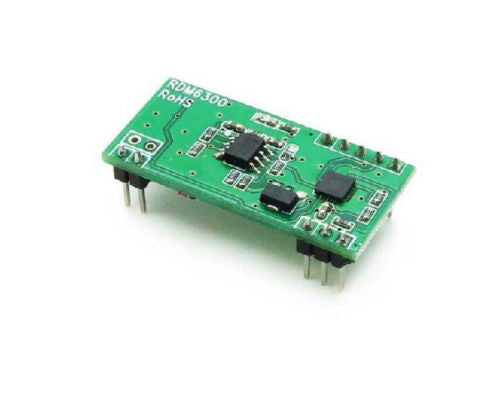

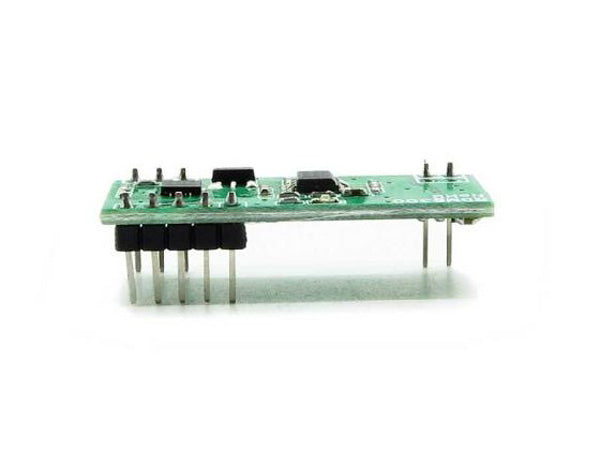

125Khz RFID Reader Module RDM6300 UART Output Access Control System

Overview

RDM6300 125KHz cardreader mini-module is designed for reading code from 125KHz card compatible read-only tags and read/write card . It can be applied in office/home security, personal identification, access control, anti-forgery, interactive toy and production control systems etc.

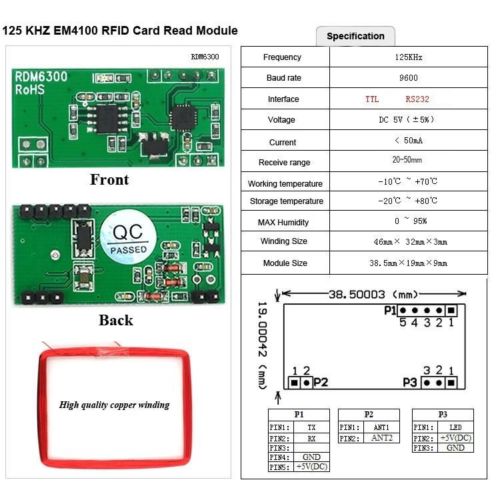

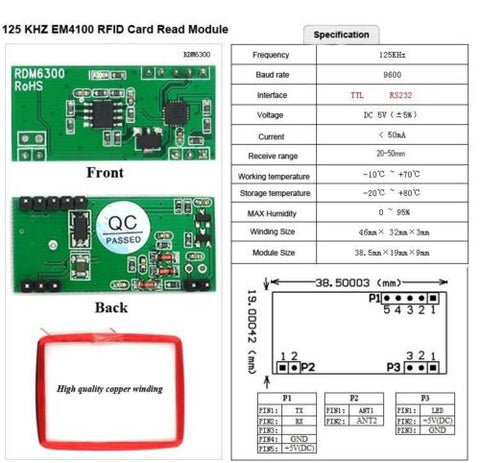

Features

• Support external antenna

• Maximum effective distance up to 150mm

• Less than 100ms decoding time

• Uart interface

• Support EM4100 compatible read only or read/write tags

• Small outline design

• Frequency: 125kHz

• Baud rate:: 9600bps (TTL RS232 format)

• Working voltage: DC 5V (±5%)

• Relative humidity: 0-95%

• Working temperature: -10℃ to +70℃

• Storage temperature：-20℃ to +80℃

• Wiring size:46mm x 32mm x 3mm

• Module size:38.5mm x 19mm x 9mm

• Supported card: EM/TK 4100, EM/TK4102, EM4200 or compatible



Module Type	RFID
Weight	15.00g
Board Size	3.8 x 1.8 x 1.2cm
Operation Level	Digital 5V
Power Supply	External 5

Sample Code:



String comdata = "";

Void setup ()

{

PinMode (2, the OUTPUT);

PinMode (3, the OUTPUT);

DigitalWrite (2, HIGH);

DigitalWrite (3, HIGH);

Serial. The begin (9600);

}

Void loop ()

{

DigitalWrite (2, HIGH);

DigitalWrite (3, HIGH);

While (Serial. The available () > 0)

{

Comdata + = char (Serial. The read ());

Delay (2);

}

If (comdata. Length () > 0 && comdata = = "0500 addf1443")

{

While (comdata. Length () > 0)

{

DigitalWrite (3, LOW);

Delay (100);

While (Serial. The available () > 0)

{

Comdata + = char (Serial. The read ());

Delay (2);

}

Comdata = "";

}

}

Else if (comdata length () > 0)

{

While (comdata. Length () > 0)

{

DigitalWrite (2, LOW);

Delay (100);

While (Serial. The available () > 0)

{

Comdata + = char (Serial. The read ());

Delay (2);

}

Comdata = "";

}

}

}

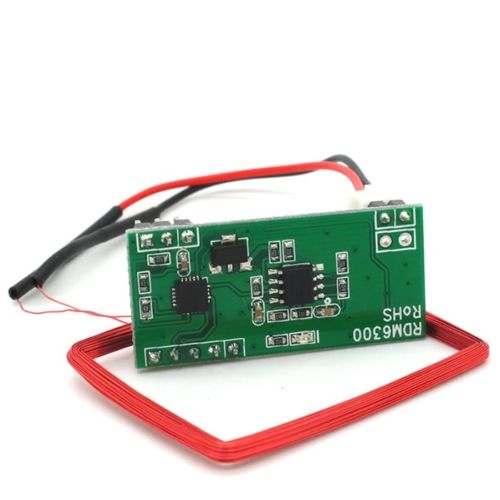

Package Include:

• 1 x 125Khz EM4100 RFID Card Key ID Reader Module
• 1 x coil
