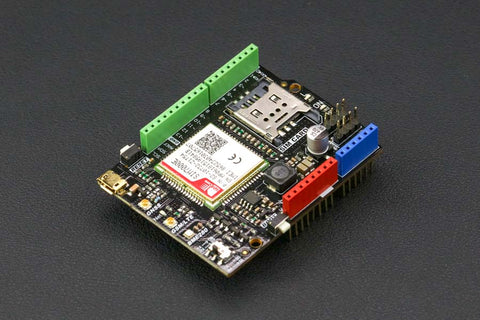

SIM7000E Arduino NB-IoT / LTE / GNSS / GPRS / GPS Expansion Shield

  • Sale
  • Regular price Dhs. 170.00

Delivery within UAE in 2 Days

NB-IoT (Narrow Band-Internet of Things) technology is a new IoT technical branch and supports cellular data network connection of low power consumption device in WAN (Wide Area Network), which is also called LPWAN. NB-IoT operates in an authorized frequency spectrum. It can be directly deployed to GSM, UMTS, and LTE without any interference of current networks, while the bandwidth consumption is just about 180KHz.

The SIM7000 series Arduino NB-IoT/LTE/GPRS expansion shields are wireless communication modules produced by DFRobot and the design is based on SIMCom SIM7000. This wireless communication module is designed for Arduino controllers, supporting multi-frequency LTE-FDD communication, dual-frequency GPRS/EDGE communication, and NB-IoT communication. No matter prototype developments or small-batch productions, the SIM7000 expansion shield is the best solution for applications of low power consumption, low latency, and meddle-throughput. Besides, with onboard GNSS (Global Navigation Satellite System), SIM7000 supports American GPS, Russian GLONASS, European Galileo, Japanese QZSS, and Chinese BeiDou Navigation Satellite System. It can be widely applied to IoT applications such as long-distance control, moving track, long-distance data uploading, and shared bikes.

The SIM7000 NB-IoT/LTE/GPRS expansion shield supports both SIM card and NB-IoT card synchronously.


SIM7000E is commonly used with frequency bands in Europe

SIM7000A is commonly used with frequency bands in America

SIM7000C is commonly used with frequency bands in China

Please carefully check your Mobile Operator statement, and select the corresponding products.


  • Input Voltage: VIN 7~12VDC(20Vmax)
  • Model: SIM7000E
  • Dimension: 53.4 x 68.6mm/2.1 x 2.7inch
  • Weight: 46g

  • Product wiki
  • Hardware Design File
  • AT Command Manual V1.01
  • SIM7000C Specification
  • SIM7000E Specification
  • BME280 Datasheet

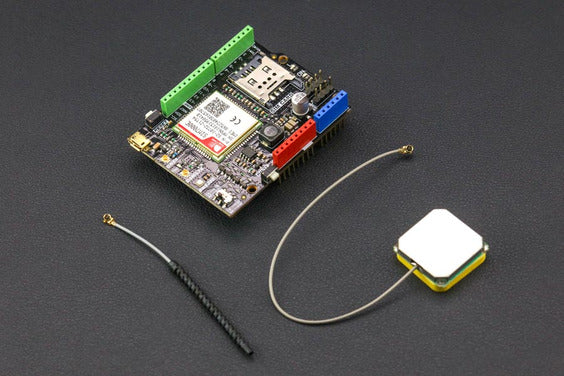

  • SIM7000E Arduino NB-IoT/LTE/GPRS expansion shield x1
  • GSM Spring Antenna x1
  • GPS Internal Antenna x1
